包裝捲帶自動成型機


包裝捲帶自動成型機
(Electronic components IC Semiconductor packing Carrier Tape Forming Machine)
        放大圖

產品說明

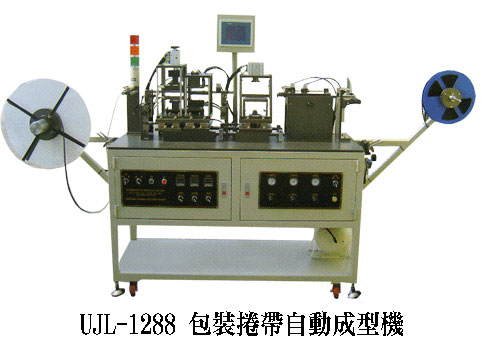

UJL-1288包裝捲帶自動成型機-
所有動作控制皆能有觸控式人機介面操作,方便產品更換及製程設定

(UJL-1288 all movement control can be operate by touch screen type
human-machine interface, product changing and process parameter
setting converient )


原料傳送、料帶加溫、成型、沖孔、計量切斷、成品捲帶全自動設計。
  (Raw material supply, material heating, forming, punch holes, counting cut-off,
   end product winding completely automatic design)
加溫模組、成型模型組及沖孔模組均具有X,Y軸及平面旋轉等方向之分
   釐卡微調設計, 換模調整快速,操作簡單方便且精確 。
  (The heating station, the forming station and the punch holes station has X,Y
  direction and station rotating axis Micrometer calipers design, To changing
   mould and setting up fast, easy and precise. )
加溫時間、合模時間及吹氣成型時間均可由控制面板手動設定,方便產
   品更換及製程設定。
  (Heating time、forming time and blowing are all can be setting through the
   touch screen. It is easy for mould changing and process setting. )
原料帶寬12~88mm可任意調整生產,帶寬可選擇44~150mm可快速調整生
   產。
  (Using for ram material width 12~88mm. Universal adjustable
   production.44-150 optional. Quick-adjusting production. )
可選擇鹵素燈成型,帶寬12~24mm配上伺服拉帶方便配合模具長度48~
   72mm ,可快速調整生產,鹵素燈Ko可達5mm深。
  (Optional:the halogen lamp forming, width 12~24mm and servo driver stroke
   easy using for mould length 48~72mm. Fast production conversion. Halogen
   lamp type forming machine, the carrier tape Ko can reach 5mm deep.)
可選擇氣壓拉帶與伺服拉帶系統,方便配合模具長度72~120mm。
  (Optional: servo driven stroke or air cylinder driver stroke, easy for mould
   length 72~120mm.)
可選擇氣壓成型、二段式成型與沖壓成型,可達到25mm深度。
  (Optional: Air pressure forming, two section of type forming and pusher
   forming,The max depth can reach 25mm. )
可選擇加上線上檢測。
  (Optional:In line examines.)

規格(specifcation) :

機型尺寸 FOOTPRINT 700L*2700W*1800H Mm3
機台總重 WEIGHT 180KG
電壓 ELECTRIC POWER 220VAC,60Hz
壓縮空氣 COMPRESSED AIR 6~8BAR
APPLIABLE TAPE SIZE 12~88MM 44~150MM可適用範圍
準確性 ACCURACY +-0.15MM
速度 SPEED 200M/HR
主控制系統
MAIN CONTROL SYSTEM
觸控式人機介面
PROGRAMMABLE LOGIC CONTROLLER
