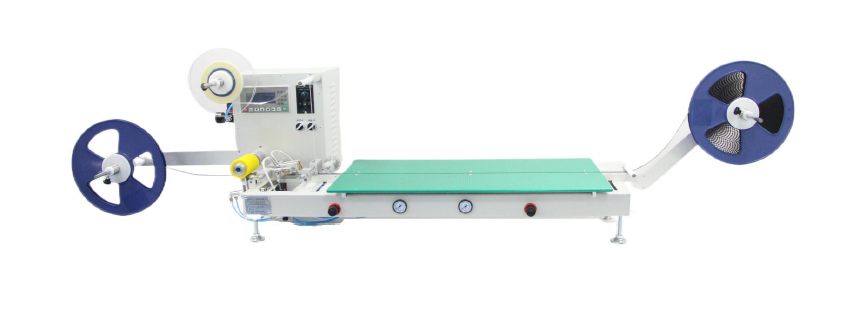

SMD半自動包裝機(SMD Semi Auto Packing Machine)
        放大圖

產品說明


UJL-8120半自動包裝機是適合人工置料泛尺寸調整的生產機台
(UJL-8120 Semi Auto packing machine suitable for manual pick and place and universal dimension adjusting packing machine.)

UJL-8120 的特點(UJL-8120 Characteristic):
可操作8mm~120mm寬的塑膠載帶(Carrier Tape)而不須更換台具。
  (To operate 8mm~120mm width carrier tape but it is not have to change machine)
光纖感測缺料偵測。
  (Optical fiber sensor use for miss parts detection.)
計數器與光纖感測採用高敏感度,數量準確。
  (To use high sensitve counter and optical fiber sensor, Quantity is accurate.)
特殊的淨動封合刀頭設計(Special fluctuation sealing knife design)。
  -浮動式的,使封合刀頭能完全興載帶接觸,而得到最佳的封合效果。
   (The floating-type that makes the sealing knife is able to completely contact
    carrier tape, to obtains best sealing effect.)
  -封合動作選擇連續式(Continuous Sealing)空壓或反覆式封合(Reciprocatc
    Sealing)。
   (It can be select Continuous Sealing or Reciprocate Sealing)
  -左右各獨立式,左右兩邊分別有左右封合溫度及封合壓力單獨控制。
   (Left and right independent type, Left and right sealing temperature and sealing
    pressure independent control.)
  -封合時間(Dwell Time)和進料速度可無段控制,最快可至5Meter/Min。
   (Dwell Time and the feeding speed universal adjusting. The Max can reach
    5Meter/Min.)
腳踏開關,可以手腳並用,增加工作效率。
  (Foot switch function, It can increase working efficiecy.)
堅固且長的檯面,甚至可適合2人同時落料。
  (Firm and long work table, Even may suit for 2 operators working with one
   machine)
橡皮大滾輪可適用封合壓敏性覆面膠帶(Pressure Sensitive Cover Tape),一
   機兩用。
  (The big rubber hoop is suitably for sealing Pressure Sensitive cover tape,Double
   functions in one machine.)
機台可興PC或PLC連線,而可做自動控制。
  (The packing machine can be contacted to PC or PLC. It could be use for
   automatic control.)
可選擇配裝CCD檢測。
  (CCD Examination optional.)

規格(specifcation) :

尺寸 Dimension 0.9m*0.65m*0.8m
載帶尺寸 Carrier tape size 8mm~120mm
溫度控制
The temperature controls System
數字顯示 Digital
計數器 Counter 光纖感測,數字顯示 Optical fiber sensor,Digital display
覆面膠帶 Cover tape 加熱型興冷作型兩用
Heat sealing and pressure sealing dual purpose
封合刀座 Sealing station 可增購備用,封合刀座 can order separately
電壓 Voltage 220Volt AC,(一向) 60/50Hz(指定使用110Volt AC一向)
220 VAC,(Single phase) 60/50Hz (110VAC optional)
空壓 Air Pressure 4Kg/cm Min. (Note: The specification may changed without notice)
